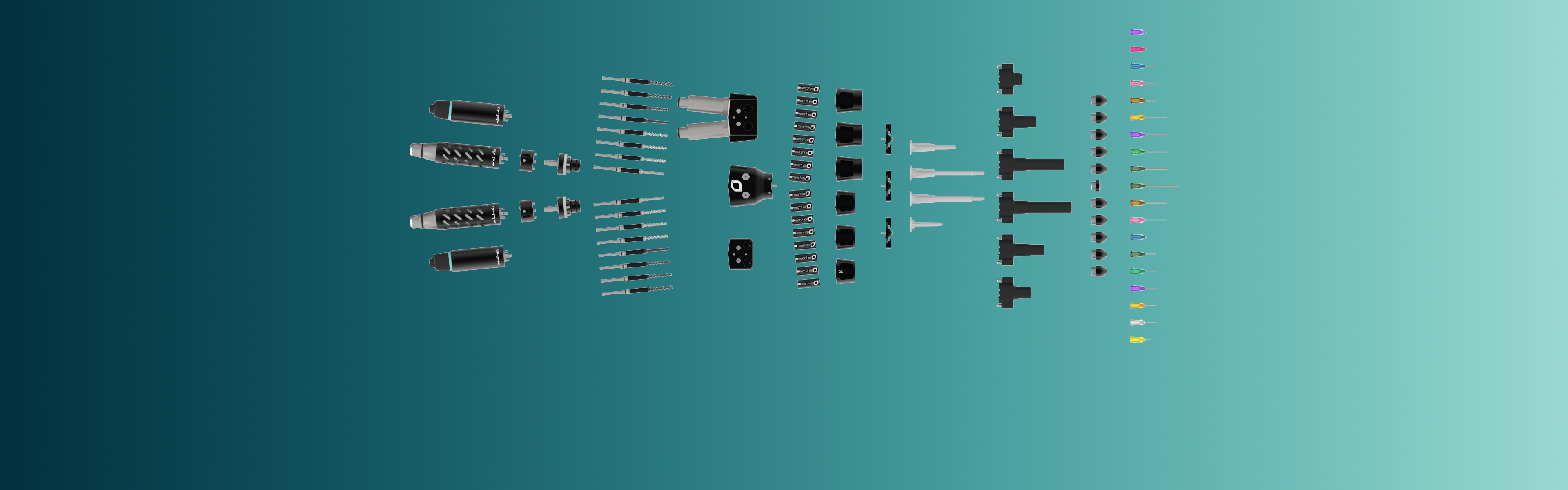

• Modular system

    Flexible. Compatible. Simple.
  • Highest precision

    From the first to the last shot
  • Microdispensing

    Great at smallest quantities
  • continuous dispensing

    By the eccentric screw pump principle

mini-dis

With the mini-dis you can process epoxy, polyurethane, silicone or acrylate based materials and solder pastes in the microliter range.
Thanks to its precise metering accuracy of ± 1% and a repeatability of > 99% small amounts can be applied in a reliable way to ensure maximum productivity.
04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

Dispensing in the microliter range made easy. The mini-dis by bdtronic can be used both in a machine and on a tabletop station.

More Videos

mini-dis relies on gentle and continuous conveying of materials according to the eccentric screw pump principle. Thanks to bdtronics extensive experience in dispensing technology, we can offer you the ideal dispensing pump for almost any application.
Whether low-viscosity or pasty, filled or unfilled, abrasive or non-abrasive. Anaerobic or UV-curing media are also possible. You want the optimal dispensing technology for your process? Then you can rely on safe and precise dispensing with bdtronic products!

Technical Data

mini-dis 1K

mini-dis-1k
Dispensing accuracy: ± 1%
Dimensions: Length 194 mm; Ø 26 mm
Material input: G 1/8“ cylindric Whitworth pipe thread DIN/ISO 228; 5/16-28 2A
Sealing material: HCR (High chemical resistance)
Self-tightness: min. 6 bar
(at 125 mPas / 20 °C)
Medium contacting parts: High strength aluminum, hard anodized, stainless steel, HCR
Motor: DC servomotor with planetary gear, absolute encoder
Dispensing volume: Starting at 0,003 cm³ = 3 µl
Weight: 350 g (with gears)
Repeat accuracy: > 99%

mini-dis 2K

mini-dis-2k
Dispensing accuracy: ± 1%
Dimensions (WxHxD): 66 x 183 x 55 mm
Material input: G 1/8“ cylindric Whitworth pipe thread DIN/ISO 228; 5/16-28 2A
Sealing material: HCR (High chemical resistance)
Material output: Mixing tube fitting with bayonet quick fastener for static mixing tube
Self-tightness: min. 6 bar
(at 125 mPas / 20 °C)
Medium contacting parts: High strength aluminum, hard anodized, stainless steel, HCR
Motor: DC servomotor with planetary gear, absolute encoder
Dispensing volume: Starting at 0,005 cm³ = 5 µl
Mixing ratio: 1:1 to 10:1
Weight: 800 g (with gears)
Repeat accuracy: > 99%
